High Pressure Wastewater Aeration Blower for Wastewater Treatment Plant
Product Introduction

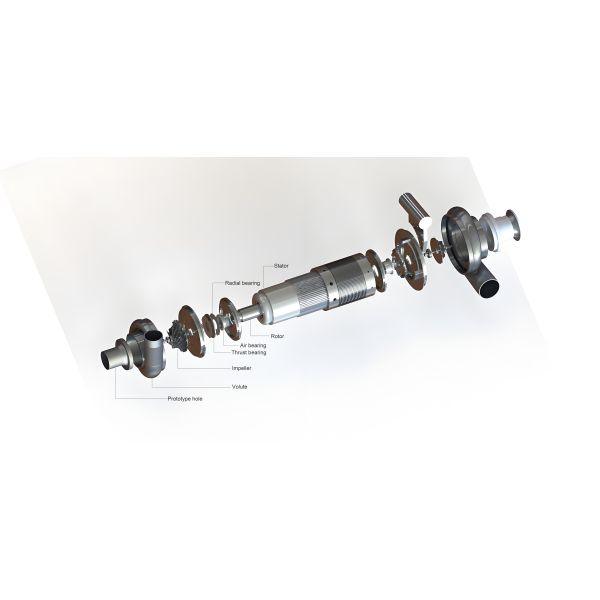

Here is the cross - sectional view of the product, incorporating several key components. The stator and rotor constitute the system’s main body, an air bearing enabling seamless rotation between them. A thrust bearing is integrated to manage axial loads. The assembly also comprises an impeller linked to the rotor, cooperating with the volute to channel fluid flow. The design stresses efficiency, the air bearing aiding in reducing friction and wear.
Product Specification
| Details | ST10 | ST20 | ST30 | ST50 | ST75 | ST100 | ST125 | ST150 | ST200 | ST250 | ST300 | ST350 | ST400 | ST500 | ST600 | Cooling Method |
| Type | SINGLE GRADE | | DOUBLE GRADE | |
| Discharge Pressure(KPA) | Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance | Air Cooling |
| 40 | 10 | 18 | | | | | | | | | | | | | |
| 60 | 7.5 | 15 | 20 | 34 | 51 | 69 | 82 | 105 | 140 | 175 | 210 | | 280 | 345 | 420 |
| 70 | | 13 | 18 | 30 | 45 | 60 | 74 | 90 | 120 | 150 | 180 | | 240 | 300 | 360 |
| 80 | | 12 | 17 | 28 | 42 | 54 | 70 | 84 | 109 | 135 | 164 | | 218 | 270 | 328 |
| 90 | | | | | 37 | 50 | 61 | 71 | 92 | | 140 | | 184 | | |
| 100 | | | | | 34 | 45 | 55 | 67 | 87 | | 133 | | | 230 | 260 |
| 150 | | | | | | 32 | 48 | 60 | 69 | 81 | 121 | 125 | | | |
| 200 | | | | | | | | 56 | 65 | 71 | | 85 | | | | Water Cooling |
| 300 | | | | | | | | | | | 105 | 79 | | | |
| 350 | | | | | | 20 | | | 37 | | | 72 | | | |
| 400 | | | | | | | | | 25 | | | 65 | | | |
| Motor Power(KW) | 7.5 | 15 | 22 | 37 | 55 | 75 | 90 | 110 | 150 | 185 | 220 | 250 | 300 | 375 | 450 | |
| Discharge Pipe(KW) | 80 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Size(MM) | Width | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1300 | 1300 | 1300 | 1300 |
| Length | 1250 | 1250 | 1250 | 1250 | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 | 2200 | 2700 | 2700 | 2700 | 2700 |
| Height | 970 | 970 | 970 | 970 | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 | 1916 | 2115 | 2115 | 2115 | 2115 |
| Weight | 680 | 680 | 680 | 750 | 800 | 960 | 960 | 1050 | 1050 | 1100 | 1320 | 1580 | 1580 | 1800 | 1800 |
Product Show

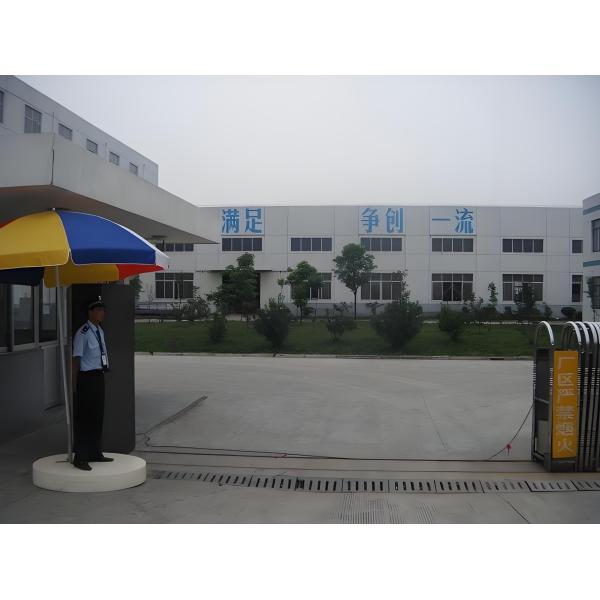

Manufacturer Introduction
Frezer Technology Co., Ltd. is a modern high-tech enterprise specializing in the design, manufacturing, and sales of air suspension blowers. Founded in 2007 and headquartered in Chongqing—a national hub for technological innovation in western China and a renowned historical and cultural city—the company is one of the few global manufacturers with patented hybrid bearing technology.
Frezer Technology Co., Ltd. is revolutionizing more than just technology—it has pioneered a new era in the centrifugal compressor industry. Compared to traditional centrifugal blowers, our solutions reduce electricity consumption and energy costs by over 30%. Featuring a 100% oil-free system that eliminates maintenance needs, we significantly lower operational expenses for customers, revolutionizing the centrifugal machinery industry, we deliver cutting-edge energy-saving and eco-friendly blower technology for the future.
Delivery
We can delivery the products by any methods as your wish.
Transaction Process
- Get requirements to match products
- Compare with the Roots blower
- Quotation
- Receive payment
- Production
- Packing in wooden cases
- Delivery
- Feedback
FAQ
Q1: What factors will you need to match the products?
Pressure & Flow Volume
Q2: What is the production time?
Normally one week after receiving your payment.
Q3: What is your minimum order quantity?
MOQ 1 set.
Q4: Are you a manufacturer?
Yes.
Q5: Which delivery methods can you support?
By air, sea, land, rail, express like DHL, UPS, FEDEX.
